DuraChem CSM-12 has proven its capacity for mercury removal, achieving less than 10 ng/Nm³ mercury vapor effluent concentrations in off-gas treatment and natural gas processing plants.
This cost-effective, non-regenerable adsorbent is sulfur impregnated activated carbon that provides optimal removal of mercury (Hg) from various gases and liquids.
| Properties | UOM | Specifications | |
|---|---|---|---|
| Nominal Size | 4-10 mesh | 3.0-4.0 mm | |
| Shape | granular | extrudate | |
| Bulk Density | g/cm³ | 0.5-0.6 | 0.5-0.6 |
| Moisture | %wt | <3 | <3 |
| Attrition Rate | %wt | <1.0 | <1.0 |
| Shelf lifetime | Year | >5 | >5 |
| Operating Temperature | °C | Ambient to 150 | |
DuraChem CSM-12 is specifically designed to remove mercury from natural gas, hydrocarbon condensate, hydrogen, and other gas or liquid streams.
No, DuraChem CSM-12 is a non-regenerable adsorbent. It is a cost-effective, sulfur-impregnated activated carbon material designed for single-use mercury removal applications.
The product operates efficiently at temperatures ranging from ambient conditions up to 150 °C.
It has a proven ability to achieve less than 10 ng/Nm³ mercury vapor effluent concentrations in off-gas treatment and natural gas processing plants.

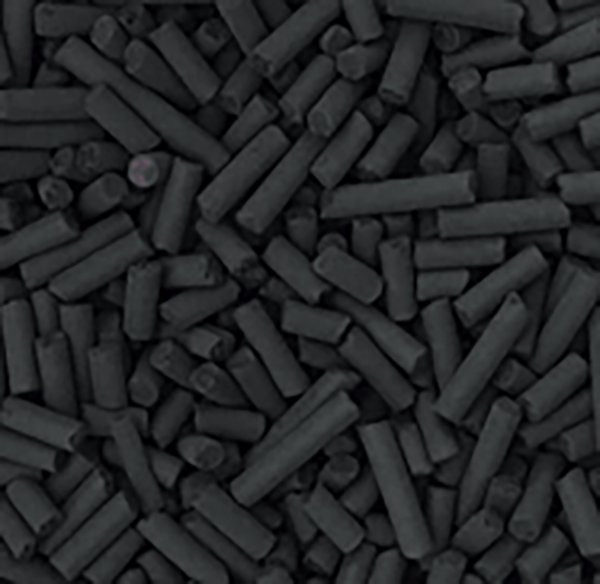

The product is available in granular form (4-10 mesh nominal size) and extrudate form (3.0-4.0 mm nominal size).
DuraChem CSM-12 is supplied and packaged in 150 kg steel drums.
