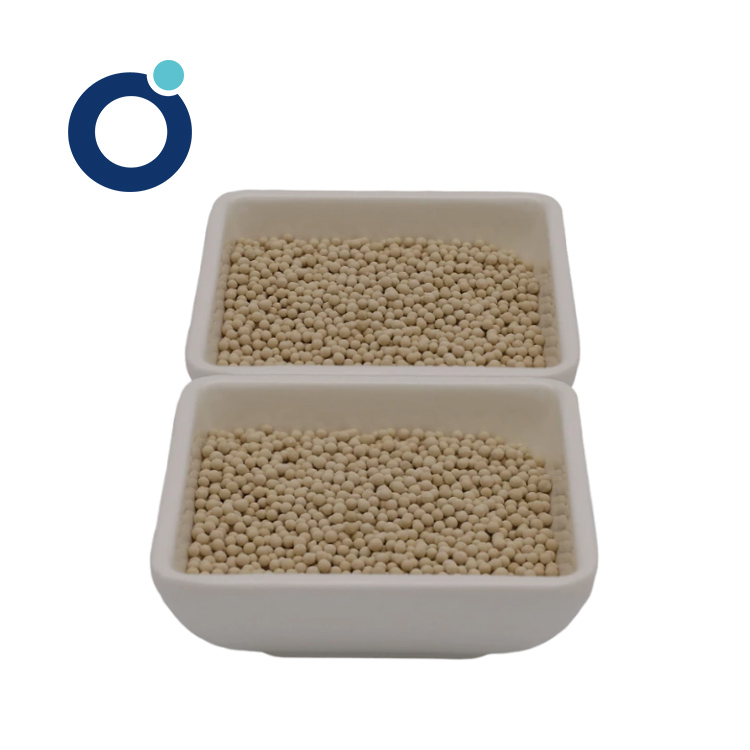

đĄ JZ-ZMS4 is sodium aluminosilicate. It could absorb the molecular which diameter is not more than 4 angstroms.
đ Technical Specifications
| Properties |
Unit |
Sphere |
Cylinder |
| 1.6-2.5 |
3-5 |
1/16â |
1/8â |
| Diameter (mm) |
mm |
1.6-2.5 |
3-5 |
1/16â |
1/8â |
| Static Water Adsorption |
âĽ% |
21.5 |
21.5 |
21.5 |
21.5 |
| Bulk Density |
âĽg/ml |
0.68 |
0.68 |
0.66 |
0.66 |
| Crushing Strength |
âĽN/Pc |
30 |
80 |
30 |
80 |
| Attrition Rate |
â¤% |
0.2 |
0.2 |
0.2 |
0.2 |
| Package Moisture |
â¤% |
1.5 |
1.5 |
1.5 |
1.5 |
đŚ Packaging Options
Sphere Packaging
150kg/steel drum
Cylinder Packaging
125kg/steel drum
â ď¸
Storage Notice: The product as desiccant cannot be exposed in the open air and should be stored in dry condition with air-proof package.
âď¸ Primary Applications
- Applied for deep dehydration and drying of air, natural gas, alkanes, refrigerants, organic solvents and other gases and liquids.
- Adsorption of methanol, hydrogen sulfide, carbon dioxide, sulfur dioxide, ethylene, propylene, etc.
- Purification of argon.
- Dehydration in the paint, dye and coating industries.
- Drying for pharmaceutical packaging, electronic components and perishable chemicals.
đ Key Application Areas
Compressed Air Drying
Organic Solvent Dehydration
Desiccant Packs
â Frequently Asked Questions
Q: What is the pore size and absorption capacity of JZ-ZMS4?
A: JZ-ZMS4 is sodium aluminosilicate, which is capable of absorbing molecules with a diameter of not more than 4 angstroms.
Q: What are the physical forms and sizes available for JZ-ZMS4?
A: JZ-ZMS4 is available in both Sphere and Cylinder shapes. The Sphere diameter sizes are 1.6-2.5mm and 3-5mm, while the Cylinder diameter sizes are 1/16â and 1/8â.
Q: What is the packaging standard for this product?
A: The product is packaged in steel drums. Spheres are packed at 150kg per steel drum, and Cylinders are packed at 125kg per steel drum.
Q: What are the recommended storage conditions for JZ-ZMS4?
A: As a desiccant, it must not be exposed to the open air. It should be stored in dry conditions with air-proof packaging.
Q: What gases and liquids can be dried using JZ-ZMS4?
A: It is widely applied for deep dehydration and drying of air, natural gas, alkanes, refrigerants, organic solvents, and other gases and liquids, as well as the purification of argon.
Q: Can JZ-ZMS4 adsorb chemical substances like methanol or carbon dioxide?
A: Yes, it is suitable for the adsorption of methanol, hydrogen sulfide, carbon dioxide, sulfur dioxide, ethylene, propylene, and similar molecular compounds.
