Storage Notice: The product as desiccant cannot be exposed in the open air and should be stored in dry conditions with air-proof packages.
| Properties | Unit | Sphere | Cylinder | ||
|---|---|---|---|---|---|
| 1.6-2.5 mm | 3-5 mm | 1/16” | 1/8” | ||
| Diameter | mm | 1.6-2.5 | 3-5 | 1/16” | 1/8” |
| Static Water Adsorption | ≥% | 21 | 21 | 21 | 21 |
| Bulk Density | ≥g/ml | 0.68 | 0.68 | 0.66 | 0.66 |
| Crushing Strength | ≥N/Pc | 30 | 80 | 30 | 70 |
| Attrition Rate | ≤% | 0.2 | 0.2 | 0.2 | 0.2 |
| Package Moisture | ≤% | 1.5 | 1.5 | 1.5 | 1.5 |

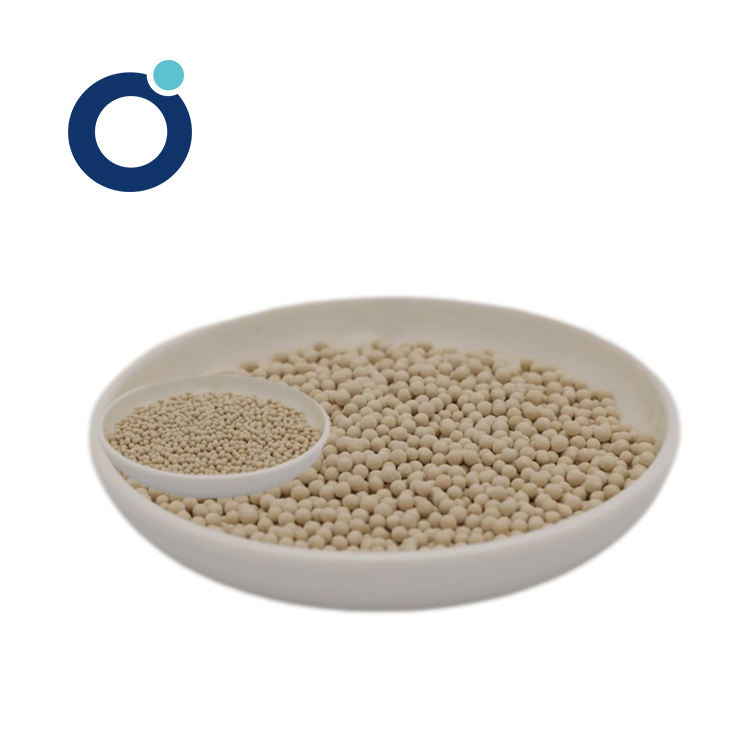

JZ-ZMS5 (Calcium sodium aluminosilicate) can absorb molecules with a critical diameter of not more than 5 angstroms.
It is packaged in robust steel drums. The sphere configuration comes in 150kg per steel drum, and the cylinder configuration comes in 125kg per steel drum.
As a high-performance desiccant, it must not be exposed to the open air. It should always be kept in dry conditions within an air-proof package.
Both the sphere (1.6-2.5mm, 3-5mm) and cylinder (1/16", 1/8") shapes feature a static water adsorption rating of ≥ 21%.
It is widely applied in the deep drying and purification of air, O2, N2, H2, petroleum gas, natural gas, ammonia decomposition gas, and various mixed industrial gases.
The crushing strength is ≥ 30 N/Pc (for 1.6-2.5mm spheres and 1/16” cylinders), ≥ 80 N/Pc (for 3-5mm spheres), and ≥ 70 N/Pc (for 1/8” cylinders).
