Best Molecular Sieve JZ-ZRF Suppliers, Product

It can effectively adsorb the water remaining in the refrigeration system, avoid residual water from freezing and blocking capillaries or expansion valves.It can also prevent liquid water from returning to the compressor, protect the compressor from the damage caused by liquid hammer phenomenon.

Send Inquiry

Product Description

Refrigerant drying

It can effectively adsorb the water remaining in the refrigeration system, avoid residual water from freezing and blocking capillaries or expansion valves.

It can also prevent liquid water from returning to the compressor, protect the compressor from the damage caused by liquid hammer phenomenon.

Standard Packaging

175kg/steel drum

Storage Requirement

Must be stored in dry condition with air-proof package. Do not expose in the open air.

Product Specifications

Properties	Unit	JZ-ZPF5	JZ-ZRF7	JZ-ZRF9	JZ-ZRF11
Diameter	mm	1.6-2.5	1.6-2.5	1.6-2.5	1.6-2.5
Static Water Adsorption	≥wt%	21	17.5	17.5	16.5
Bulk Density	≥wt%	6.0	6.0	6.0	6.0
Crushing Strength	≥g/ml	0.80	0.85	0.87	0.85
Attrition Rate(dry)	≥N/Pc	80	75	80	75
Attrition Rate(humidity)	≤wt%	0.1	0.1	0.1	0.1
Package Moisture	≤wt%	3.0	3.0	2.0	2.0
Properties	≤wt%	1.5	1.5	1.5	1.5
Package	Kg/barrel	175	175	180	175
Refrigerant Applied	/	R12, R22	R134a, Butane, CFC-12	Air conditioner Refrigerator, Car Refrigerant	R407C, R410a

Frequently Asked Questions

How does the desiccant protect the refrigeration system?

It adsorbs the remaining water inside the refrigeration system to prevent ice blockage in capillaries and expansion valves, while also preventing water from returning to damage the compressor.

What are the proper storage conditions for this desiccant?

The product should not be exposed to the open air. It must be stored in a dry condition inside an air-proof, sealed package to maintain its adsorption capability.

Which refrigerants are compatible with JZ-ZRF7?

JZ-ZRF7 is specifically designed to apply to refrigerants such as R134a, Butane, and CFC-12.

What is the packaging specification for these products?

The standard packaging is 175kg per steel drum for models JZ-ZPF5, JZ-ZRF7, and JZ-ZRF11, and 180kg per steel drum for JZ-ZRF9.

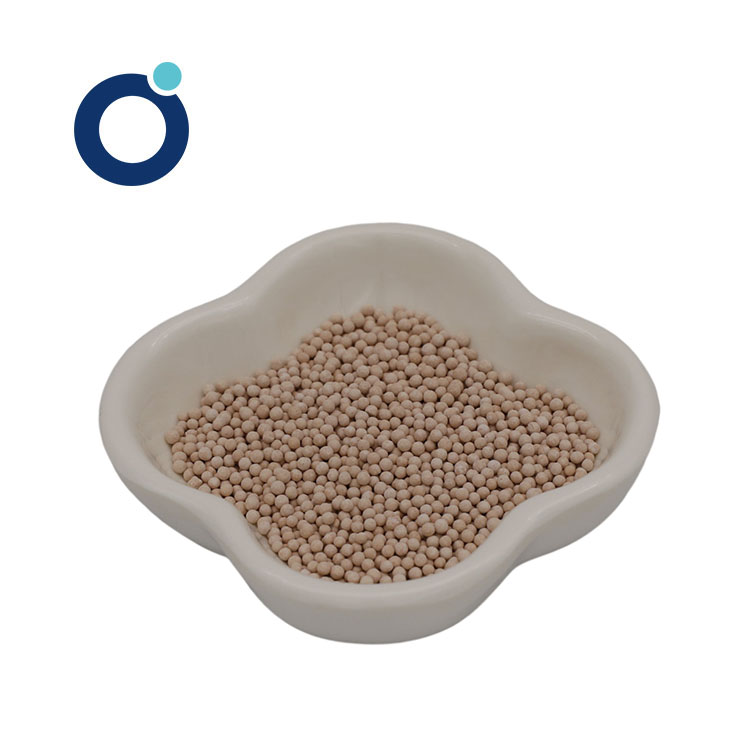

What is the diameter range for these desiccant beads?

All listed models (JZ-ZPF5, JZ-ZRF7, JZ-ZRF9, and JZ-ZRF11) feature a standard bead diameter of 1.6-2.5 mm.
