JZ-CMS3PN is a new kind of non-polar adsorbent, designed for the enrichment of nitrogen from air, and has a high adsorption capacity from oxygen.

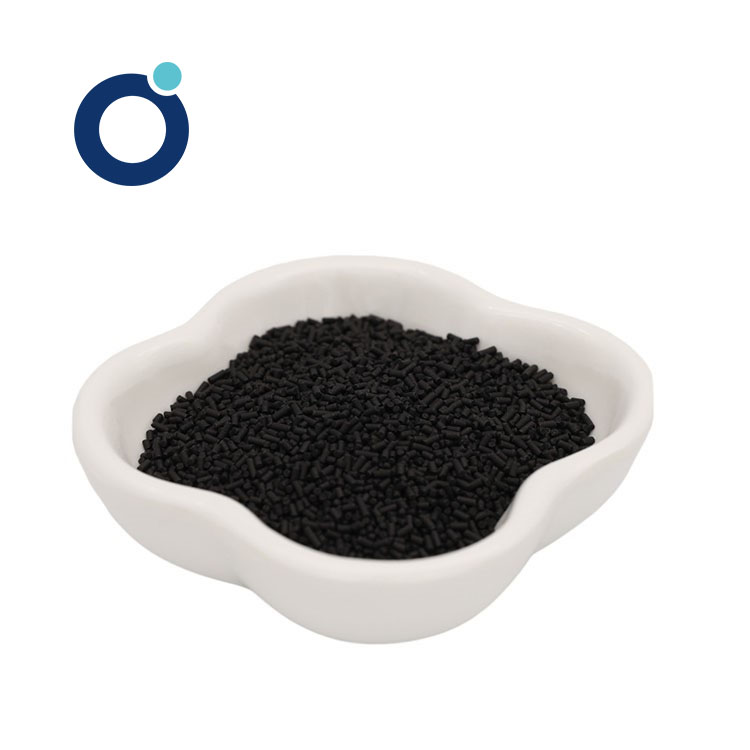

Carbon molecular sieve (CMS) is a cylindrical black solid containing countless 4 angstrom fine pores, primarily used to separate air into nitrogen and oxygen.
JZ-CMS3PN is widely implemented in PSA (Pressure Swing Adsorption) systems to concentrate and separate N2 and O2 in the air. Typical application areas include:
| Type | Purity (%) | Productivity (Nm³/h.t) | Air / N₂ Ratio |
|---|---|---|---|
| JZ-CMS3PN | 99.5 | 330 | 2.8 |
| 99.9 | 250 | 3.3 | |
| 99.99 | 165 | 4.0 | |
| 99.999 | 95 | 6.4 |
| Testing Size | Testing Temperature | Adsorption Pressure | Adsorption Time |
|---|---|---|---|
| 1.0 mm | 20℃ | 0.8 Mpa | 2 * 60 s |
| Type | Unit | Data |
|---|---|---|
| Diameter size | mm | 1.0, 1.2 |
| Bulk Density | g/L | 650 - 690 |
| Crush Strength | N/Piece | ≥ 35 |
20kg ; 40kg ; 137kg / plastic drum
The product as desiccant cannot be exposed in the open air and should be stored in dry condition with air-proof package.
JZ-CMS3PN is a new type of non-polar carbon molecular sieve (CMS) designed specifically for enriching nitrogen from the air. It features high adsorption capacity for oxygen.
It offers high efficiency, low air consumption, high purity nitrogen capacity, large hardness, minimal ash, long operational lifetime, and uniform particle sizes to resist air current impacts.
It is a cylindrical black solid containing tiny 4 angstrom pores. Under Pressure Swing Adsorption (PSA) systems, it effectively separates air into nitrogen and oxygen.
It is widely used for nitrogen/oxygen separation in PSA systems, compressed air drying, organic solvent dehydration, and desiccant packs.
As a desiccant, it must not be left exposed to the open air. It should be stored in dry conditions within air-proof packaging to maintain its effectiveness.
JZ-CMS3PN is packaged and shipped in plastic drums available in 20kg, 40kg, and 137kg weight options.
